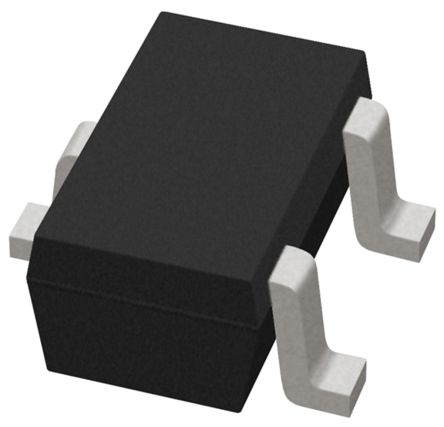

STMicroelectronics ESDCAN03-2BWY, Dual Bi-Directional TVS Diode, 250W, 3-Pin SOT-323 [ESDCAN03-2BWY]; 124-1110
0₫
Mã kho: 1241110
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Complex Array |
Direction Type | Bi-Directional |
Maximum Clamping Voltage | 41V |
Minimum Breakdown Voltage | 26.5V |
Mounting Type | Surface Mount |
Package Type | SOT-323 (SC-70) |
Maximum Reverse Stand-off Voltage | 24V |
Pin Count | 3 |
Peak Pulse Power Dissipation | 250W |
Maximum Peak Pulse Current | 3.7A |
ESD Protection | Yes |
Number of Elements per Chip | 2 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Length | 1.35mm |
ESD Voltage | 30kV |
Working Voltage | 24V |
Capacitance | 3.5pF |
Dimensions | 1.35 x 2.2 x 1mm |
Height | 1mm |
Test Current | 1mA |
Width | 2.2mm |
Maximum Reverse Leakage Current | 50nA |
