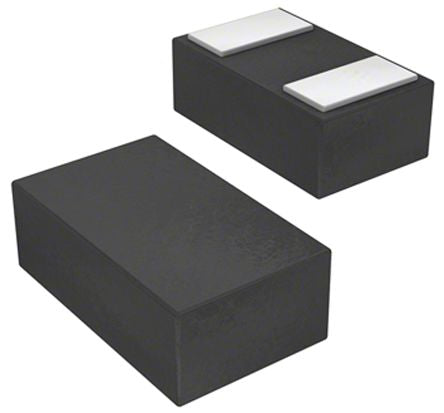

STMicroelectronics ESDAVLC12-1BV2, Bi-Directional TVS Diode, 2-Pin ST01005 [ESDAVLC12-1BV2]; 876-5610
0₫
Mã kho: 8765610
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 20V |
| Minimum Breakdown Voltage | 12V |
| Mounting Type | Surface Mount |
| Package Type | ST01005 |
| Maximum Reverse Stand-off Voltage | 10.5V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 1.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Capacitance | 10pF |
| Height | 0.2mm |
| ESD Voltage | 15kV |
| Length | 0.42mm |
| Width | 0.22mm |
| Maximum Reverse Leakage Current | 70nA |
| Dimensions | 0.42 x 0.22 x 0.2mm |
