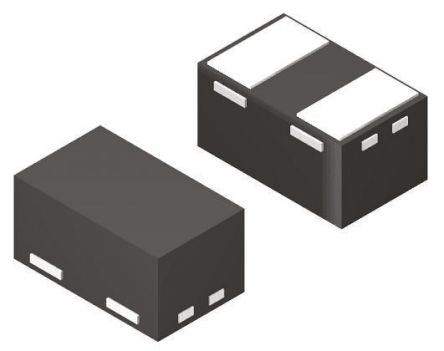

STMicroelectronics ESDALC6V1-1U2, Uni-Directional TVS Diode, 20W, 2-Pin ST-0201 [ESDALC6V1-1U2]; 795-8404
0₫
Mã kho: 7958404
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Minimum Breakdown Voltage | 6.1V |
| Mounting Type | Surface Mount |
| Package Type | ST-0201 |
| Maximum Reverse Stand-off Voltage | 3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 20W |
| Maximum Peak Pulse Current | 2A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Reverse Leakage Current | 100nA |
| Length | 0.65mm |
| Test Current | 1mA |
| Height | 0.33mm |
| Dimensions | 0.65 x 0.35 x 0.33mm |
| Width | 0.35mm |
