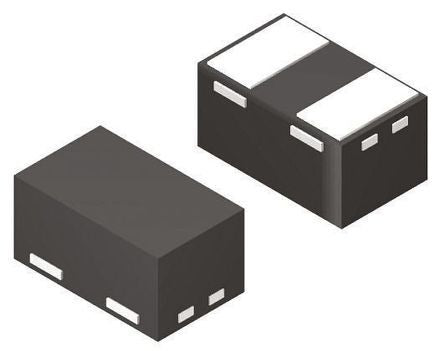

STMicroelectronics ESDALC6V1-1M2, Uni-Directional TVS Diode, 50W, 2-Pin SOD-882 [ESDALC6V1-1M2]; 165-8162
0₫
Mã kho: 1658162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage | 6.1V |
| Mounting Type | Surface Mount |
| Package Type | SOD-882 |
| Maximum Reverse Stand-off Voltage | 3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 50W |
| Maximum Peak Pulse Current | 6A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 0.45mm |
| Length | 1.05mm |
| Capacitance | 22pF |
| Dimensions | 1.05 x 0.65 x 0.45mm |
| Maximum Reverse Leakage Current | 100nA |
| Test Current | 1mA |
| Width | 0.65mm |
