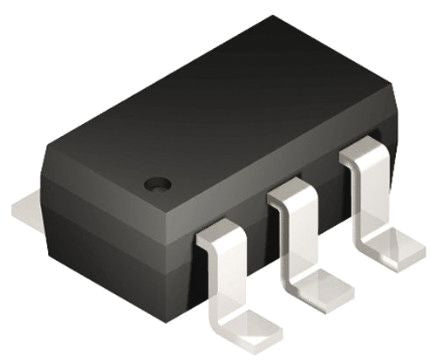

STMicroelectronics ESDA6V1-5SC6Y, Quint Uni-Directional TVS Diode, 80W, 6-Pin SOT-23 [ESDA6V1-5SC6Y]; 163-7342
0₫
Mã kho: 1637342
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Array |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 11.4V |
Minimum Breakdown Voltage | 6.1V |
Mounting Type | Surface Mount |
Package Type | SOT-23 |
Maximum Reverse Stand-off Voltage | 5.2V |
Pin Count | 6 |
Peak Pulse Power Dissipation | 80W |
Maximum Peak Pulse Current | 7A |
ESD Protection | Yes |
Number of Elements per Chip | 5 |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +150 °C |
Dimensions | 3.05 x 1.75 x 1.3mm |
Height | 1.3mm |
Width | 1.75mm |
Test Current | 1mA |
Length | 3.05mm |
Automotive Standard | AEC-Q101 |
Maximum Reverse Leakage Current | 1µA |
