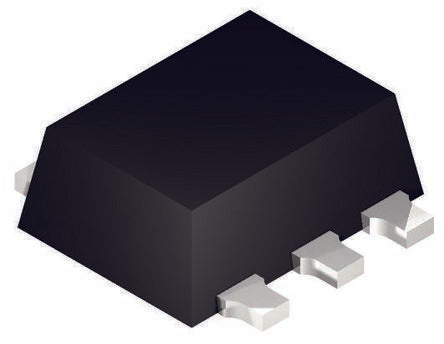

STMicroelectronics ESDA6V1-5P6, Quint Uni-Directional TVS Diode, 150W, 6-Pin SOT-666IP [ESDA6V1-5P6]; 250-088
0₫
Mã kho: 250088
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage | 6.1V |
| Mounting Type | Surface Mount |
| Package Type | SOT-666IP |
| Maximum Reverse Stand-off Voltage | 3V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 150W |
| ESD Protection | Yes |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 0.6mm |
| Test Current | 1mA |
| Dimensions | 1.7 x 1.3 x 0.6mm |
| Length | 1.7mm |
| Maximum Reverse Leakage Current | 500nA |
| Width | 1.3mm |
