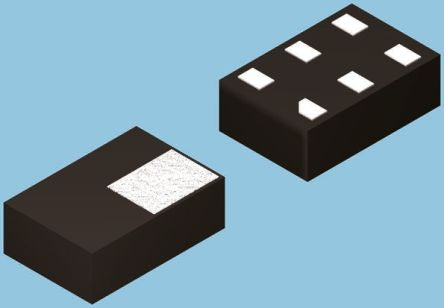

STMicroelectronics ESDA6V1-5M6, Quint Uni-Directional TVS Diode, 100W, 6-Pin μQFN [ESDA6V1-5M6]; 795-8596
0₫
Mã kho: 7958596
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage | 6.1V |
| Mounting Type | Surface Mount |
| Package Type | μQFN |
| Maximum Reverse Stand-off Voltage | 3V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 100W |
| Maximum Peak Pulse Current | 8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1.45mm |
| Maximum Reverse Leakage Current | 500nA |
| Dimensions | 1.45 x 1 x 0.55mm |
| Height | 0.55mm |
| Test Current | 1mA |
| Width | 1mm |
