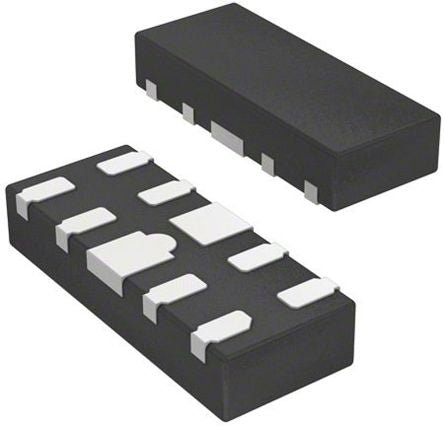

STMicroelectronics ECMF04-4HSWM10, Quad EMI Filter & ESD Protector, 10-Pin μQFN [ECMF04-4HSWM10]; 168-8804
0₫
Mã kho: 1688804
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Complex Array |
| Minimum Breakdown Voltage | 4.5V |
| Mounting Type | Surface Mount |
| Package Type | μQFN |
| Maximum Reverse Stand-off Voltage | 3V |
| Pin Count | 10 |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 2.65mm |
| Width | 1.4mm |
| Dimensions | 2.65 x 1.4 x 0.5mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 100nA |
| Height | 0.5mm |
