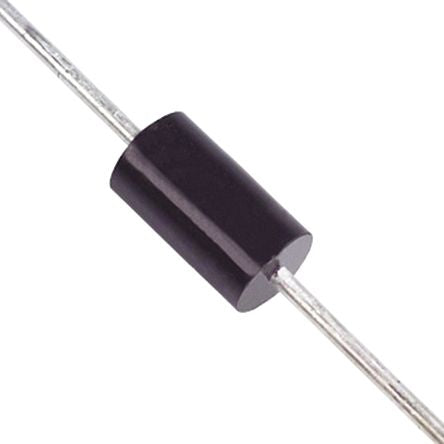

STMicroelectronics 1.5KE47CARL, Bi-Directional TVS Diode, 1500W, 2-Pin DO-201 [1.5KE47CARL]; 168-7717
0₫
Mã kho: 1687717
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 84V |
| Minimum Breakdown Voltage | 49.4V |
| Mounting Type | Through Hole |
| Package Type | DO-201 |
| Maximum Reverse Stand-off Voltage | 40.2V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 119A |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Length | 9.5mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Dimensions | 5.3 (Dia.) x 9.5mm |
| Diameter | 5.3mm |
