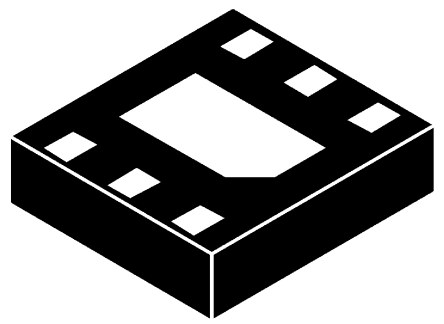

Semtech RCLAMP2504P.TCT, Uni-Directional TVS Diode Array, 80W, 6-Pin SLP EP [RCLAMP2504P.TCT]; 691-0672
by Semtech
0₫
Mã kho: 6910672
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 13V |
| Mounting Type | Surface Mount |
| Package Type | SLP EP |
| Maximum Reverse Stand-off Voltage | 2.5V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 80W |
| Maximum Peak Pulse Current | 5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 1.6mm |
| Width | 1.6mm |
| Dimensions | 1.6 x 1.6 x 0.55mm |
| Height | 0.55mm |
| Maximum Reverse Leakage Current | 500nA |
