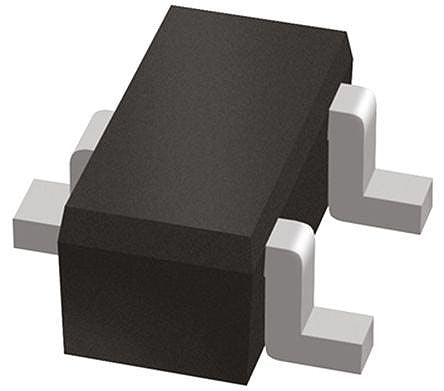

Semtech RCLAMP1502B.TCT, Dual Uni-Directional TVS Diode, 200W, 3-Pin SOT-416 (SC-75) [RCLAMP1502B.TCT]; 691-0653
by Semtech
0₫
Mã kho: 6910653
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 40V |
| Minimum Breakdown Voltage | 16.7V |
| Mounting Type | Surface Mount |
| Package Type | SOT-416 (SC-75) |
| Maximum Reverse Stand-off Voltage | 15V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 200W |
| Maximum Peak Pulse Current | 5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1.6mm |
| Width | 0.8mm |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Test Current | 1mA |
| Height | 0.8mm |
| Maximum Reverse Leakage Current | 1µA |
