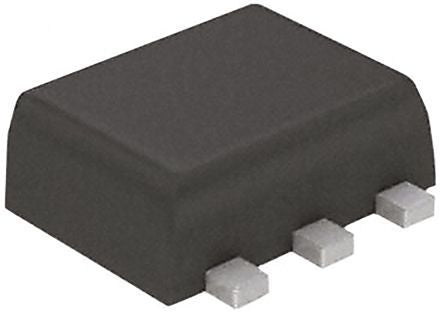

ROHM RSB12JS2T2R, Dual Bi-Directional ESD Protection Diode, 0.15W, 6-Pin SC75A [RSB12JS2T2R]; 124-6812
by ROHM
0₫
Mã kho: 1246812
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Isolated |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage | 9.6V |
| Mounting Type | Surface Mount |
| Package Type | SC75A |
| Maximum Reverse Stand-off Voltage | 9V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 0.15W |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Maximum Operating Temperature | +150 °C |
| Test Current | 5mA |
| Length | 1.6mm |
| Capacitance | 1pF |
| Maximum Reverse Leakage Current | 100nA |
| Width | 1.2mm |
| Height | 0.5mm |
| Dimensions | 1.6 x 1.2 x 0.5mm |
