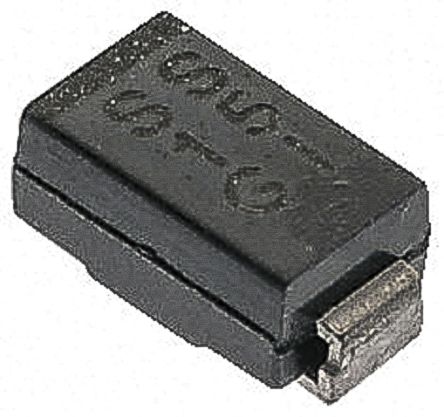

ROHM RSA5LTE25, Uni-Directional ESD Protection Diode, 600W, 2-Pin PMDS, SOD-106 [RSA5LTE25]; 168-1566
by ROHM
0₫
Mã kho: 1681566
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 10.5V |
| Minimum Breakdown Voltage | 6.45V |
| Mounting Type | Surface Mount |
| Package Type | PMDS, SOD-106 |
| Maximum Reverse Stand-off Voltage | 5.8V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 57A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 4.5mm |
| Test Current | 10mA |
| Dimensions | 4.5 x 2.6 x 1.9mm |
| Width | 2.6mm |
| Height | 1.9mm |
| Maximum Reverse Leakage Current | 800µA |
