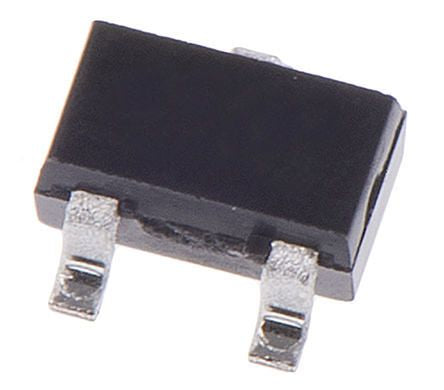

ON Semiconductor SZESD7205WTT1G, Uni-Directional ESD Protection Diode, 3-Pin SOT-323 [SZESD7205WTT1G]; 141-3985
0₫
Mã kho: 1413985
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 12.5V |
Minimum Breakdown Voltage | 5.2V |
Mounting Type | Surface Mount |
Package Type | SOT-323 |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 3 |
Maximum Peak Pulse Current | 16A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +125 °C |
Capacitance | 0.85pF |
Automotive Standard | AEC-Q101 |
Length | 2.2mm |
Dimensions | 2.2 x 1.35 x 0.7mm |
Maximum Reverse Leakage Current | 1µA |
Test Current | 1mA |
Height | 0.7mm |
Width | 1.35mm |
