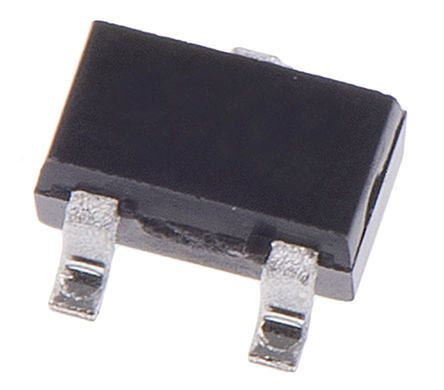

ON Semiconductor SZESD7205WTT1G, Uni-Directional ESD Protection Diode, 3-Pin SOT-323 [SZESD7205WTT1G]; 141-2089
0₫
Mã kho: 1412089
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 12.5V |
| Minimum Breakdown Voltage | 5.2V |
| Mounting Type | Surface Mount |
| Package Type | SOT-323 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 16A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 1.35mm |
| Length | 2.2mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
| Capacitance | 0.85pF |
| Dimensions | 2.2 x 1.35 x 0.7mm |
| Automotive Standard | AEC-Q101 |
| Height | 0.7mm |
