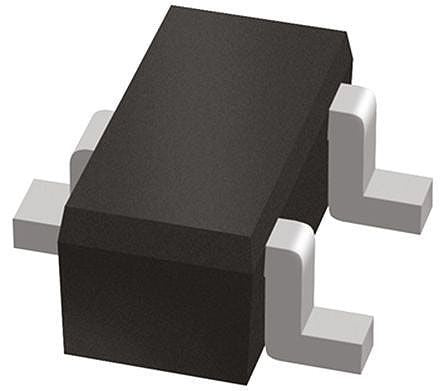

ON Semiconductor SZESD7102BT1G, Dual Bi-Directional ESD Protection Diode, 3-Pin SOT-416 (SC-75) [SZESD7102BT1G]; 134-9513
0₫
Mã kho: 1349513
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 30V |
| Minimum Breakdown Voltage | 16.5V |
| Mounting Type | Surface Mount |
| Package Type | SOT-416 (SC-75) |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 16A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 1.65 x 0.9 x 0.8mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Width | 0.9mm |
| Height | 0.8mm |
| Length | 1.65mm |
| Capacitance | 0.5pF |
| Automotive Standard | AEC-Q101 |
