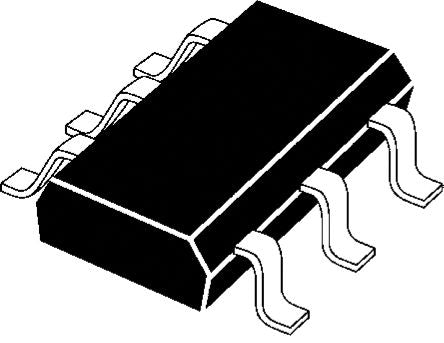

ON Semiconductor SZESD1L001W1T2G, Dual Uni-Directional ESD Protection Diode, 6-Pin SC-88 [SZESD1L001W1T2G]; 171-8359
0₫
Mã kho: 1718359
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 30V |
| Minimum Breakdown Voltage | 16.5V |
| Mounting Type | Surface Mount |
| Package Type | SC-88 |
| Pin Count | 6 |
| Maximum Peak Pulse Current | 16A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 2.2mm |
| Height | 1mm |
| Width | 1.35mm |
| Test Current | 1mA |
| Automotive Standard | AEC-Q101 |
| Dimensions | 2.2 x 1.35 x 1mm |
| Working Voltage | 16V |
| Maximum Reverse Leakage Current | 1µA |
| Capacitance | 0.5pF |
