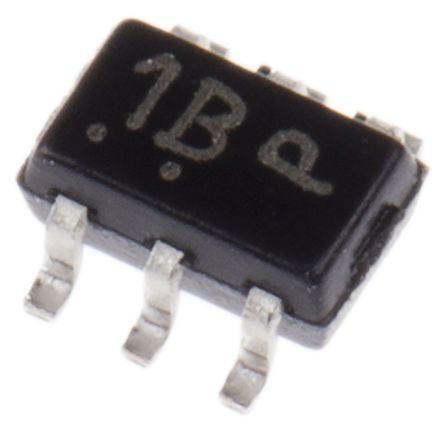

ON Semiconductor SMF05CT1G, Quint Uni-Directional TVS Diode, 100W, 6-Pin SOT-363 (SC-88) [SMF05CT1G]; 124-5426
0₫
Mã kho: 1245426
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 12.5V |
| Minimum Breakdown Voltage | 6.2V |
| Mounting Type | Surface Mount |
| Package Type | SOT-363 (SC-88) |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 100W |
| Maximum Peak Pulse Current | 8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 1.35mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Height | 1mm |
| Length | 2.2mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 5µA |
