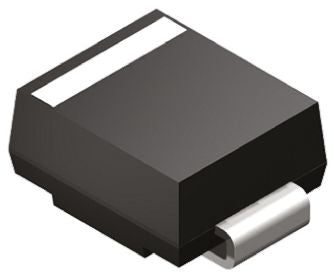

ON Semiconductor SMBJ48CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA [SMBJ48CA]; 803-2049
0₫
Mã kho: 8032049
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 77.4V |
| Minimum Breakdown Voltage | 53.3V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Reverse Stand-off Voltage | 48V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 7.8A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 4.75mm |
| Height | 2.45mm |
| Width | 3.95mm |
| Maximum Reverse Leakage Current | 5µA |
| Dimensions | 4.75 x 3.95 x 2.45mm |
| Test Current | 1mA |
