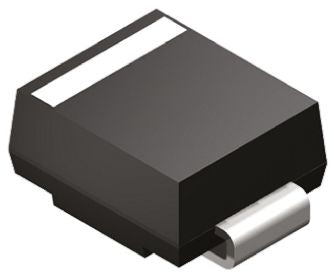

ON Semiconductor SMBJ40A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA [SMBJ40A]; 166-1917
0₫
Mã kho: 1661917
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 64.5V |
| Minimum Breakdown Voltage | 44.4V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Reverse Stand-off Voltage | 40V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 9.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 4.57mm |
| Height | 2.237mm |
| Width | 3.94mm |
| Dimensions | 4.57 x 3.94 x 2.237mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
