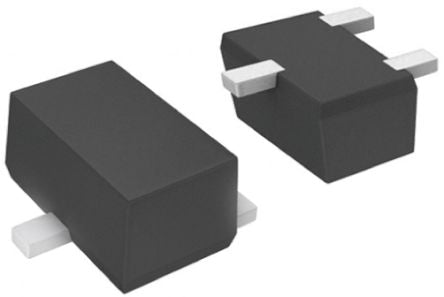

ON Semiconductor SESD7L5.0DT5G, Uni-Directional TVS Diode, 0.15W, 3-Pin SOT-723 [SESD7L5.0DT5G]; 121-9839
0₫
Mã kho: 1219839
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Common Anode |
| Maximum Clamping Voltage | 10.4V |
| Minimum Breakdown Voltage | 5.4V |
| Mounting Type | Surface Mount |
| Package Type | SOT-723 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 0.15W |
| Maximum Peak Pulse Current | 1A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Capacitance | 0.45pF |
| Automotive Standard | AEC-Q101 |
| Length | 1.25mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Dimensions | 1.25 x 0.85 x 0.55mm |
| Width | 0.85mm |
| Height | 0.55mm |
