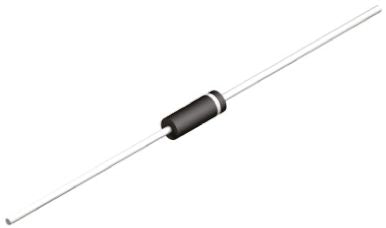

ON Semiconductor P6KE6V8CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-15 [P6KE6V8CA]; 169-8627
0₫
Mã kho: 1698627
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Direction Type | Bi-Directional |
Diode Configuration | Single |
Maximum Clamping Voltage | 10.5V |
Minimum Breakdown Voltage | 6.45V |
Mounting Type | Through Hole |
Package Type | DO-15 |
Maximum Reverse Stand-off Voltage | 5.8V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 600W |
Maximum Peak Pulse Current | 57.1A |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +175 °C |
Diameter | 3.6mm |
Test Current | 10mA |
Maximum Reverse Leakage Current | 1mA |
Dimensions | 3.6 (Dia.) x 7.6mm |
Height | 7.6mm |
