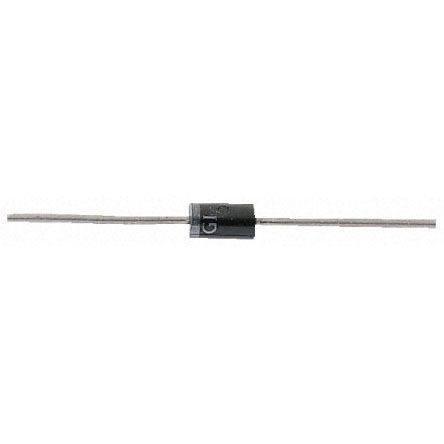

ON Semiconductor P6KE20A, Uni-Directional TVS Diode, 600W, 2-Pin DO-15 [P6KE20A]; 166-1776
0₫
Mã kho: 1661776
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 27.7V |
| Minimum Breakdown Voltage | 19V |
| Mounting Type | Through Hole |
| Package Type | DO-15 |
| Maximum Reverse Stand-off Voltage | 17V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 22A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 7.62mm |
| Height | 3.56mm |
| Width | 3.56mm |
| Maximum Reverse Leakage Current | 5µA |
| Dimensions | 7.62 x 3.56 x 3.56mm |
| Test Current | 1mA |
