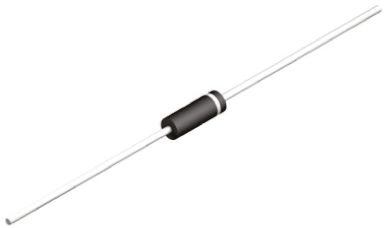

ON Semiconductor P6KE18CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-15 [P6KE18CA]; 169-8717
0₫
Mã kho: 1698717
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 25.2V |
| Minimum Breakdown Voltage | 17.1V |
| Mounting Type | Through Hole |
| Package Type | DO-15 |
| Maximum Reverse Stand-off Voltage | 15.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 24A |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Length | 7.6mm |
| Diameter | 3.6mm |
| Dimensions | 3.6 (Dia.) x 7.6mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 5µA |
