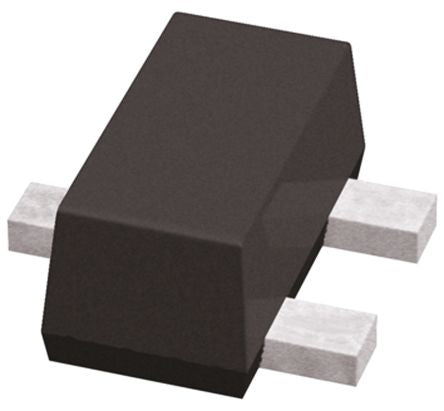

ON Semiconductor NZL6V8AXV3T1G, Dual Uni-Directional ESD Protection Diode, 73W, 3-Pin SOT-523 [NZL6V8AXV3T1G]; 145-4754
0₫
Mã kho: 1454754
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Common Anode |
| Maximum Clamping Voltage | 11.9V |
| Minimum Breakdown Voltage | 6.46V |
| Mounting Type | Surface Mount |
| Package Type | SOT-523 (SC-89) |
| Maximum Reverse Stand-off Voltage | 4.5V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 73W |
| Maximum Peak Pulse Current | 6.7A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 5mA |
| Capacitance | 45pF |
| Length | 1.7mm |
| Height | 0.8mm |
| Width | 0.95mm |
| Dimensions | 1.7 x 0.95 x 0.8mm |
