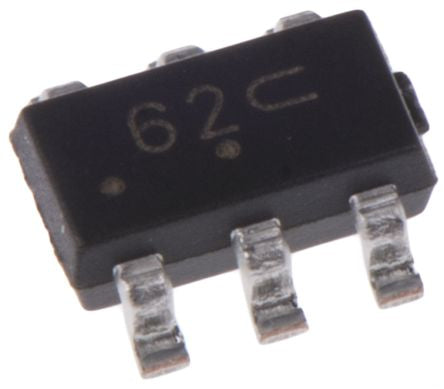

ON Semiconductor NUP2201MR6T1G, Dual Uni-Directional TVS Diode Array, 500W, 6-Pin TSOP [NUP2201MR6T1G]; 100-7575
0₫
Mã kho: 1007575
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Direction Type | Uni-Directional |
Diode Configuration | Complex Array |
Maximum Clamping Voltage | 20V |
Minimum Breakdown Voltage | 6V |
Mounting Type | Surface Mount |
Package Type | TSOP |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 6 |
Peak Pulse Power Dissipation | 500W |
Maximum Peak Pulse Current | 25A |
ESD Protection | Yes |
Number of Elements per Chip | 2 |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Length | 3mm |
Maximum Reverse Leakage Current | 5µA |
Dimensions | 3 x 1.5 x 0.94mm |
Width | 1.5mm |
Height | 0.94mm |
Test Current | 1mA |
