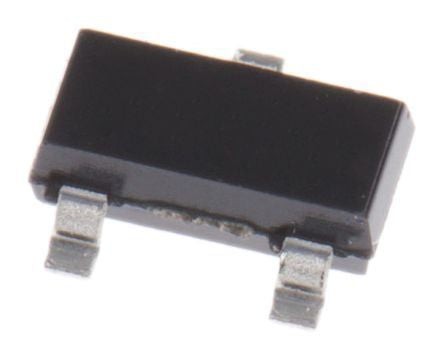

ON Semiconductor NUP1105LT1G, Dual Bi-Directional TVS Diode, 350W, 3-Pin SOT-23 [NUP1105LT1G]; 184-1072
0₫
Mã kho: 1841072
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 40V |
| Minimum Breakdown Voltage | 25.7V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 350W |
| Maximum Peak Pulse Current | 8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 3.04mm |
| Automotive Standard | AEC-Q101 |
| Capacitance | 60pF |
| Test Current | 1mA |
| Width | 1.4mm |
| Maximum Reverse Leakage Current | 100nA |
| Height | 1.01mm |
| Dimensions | 3.04 x 1.4 x 1.01mm |
