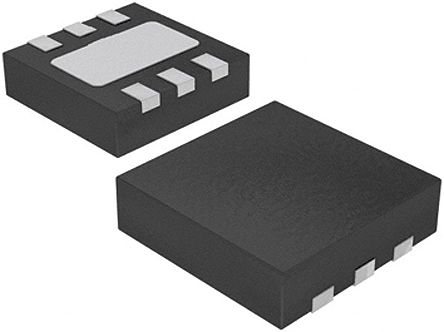

ON Semiconductor NSPM5131MUTBG, Uni-Directional ESD Protection Diode, 6-Pin UDFN [NSPM5131MUTBG]; 171-8419
0₫
Mã kho: 1718419
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 21.5V |
| Minimum Breakdown Voltage | 13.6V |
| Mounting Type | Surface Mount |
| Package Type | UDFN |
| Pin Count | 6 |
| Maximum Peak Pulse Current | 100A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Working Voltage | 13.5V |
| Height | 0.5mm |
| Test Current | 1mA |
| Dimensions | 1.8 x 2 x 0.5mm |
| Maximum Reverse Leakage Current | 1µA |
| Width | 2mm |
| Length | 1.8mm |
