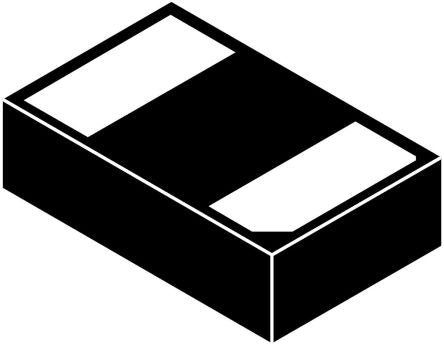

ON Semiconductor NSPM2051MUT5G, Uni-Directional ESD Protection Diode, 1050W, 2-Pin U-DFN1610 [NSPM2051MUT5G]; 134-9576
0₫
Mã kho: 1349576
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 10.5V |
| Minimum Breakdown Voltage | 5.1V |
| Mounting Type | Surface Mount |
| Package Type | U-DFN1610 |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1050W |
| Maximum Peak Pulse Current | 100A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 100nA |
| Test Current | 1mA |
| Height | 0.5mm |
| Width | 1mm |
| Capacitance | 380pF |
| Length | 1.6mm |
| Dimensions | 1.6 x 1 x 0.5mm |
