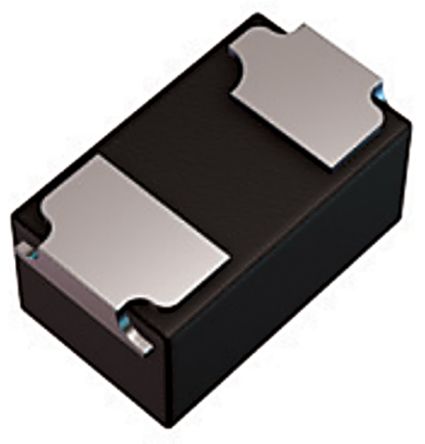

ON Semiconductor NSPM0051MUT5G, Uni-Directional ESD Protection Array, 2-Pin UDFN [NSPM0051MUT5G]; 171-8399
0₫
Mã kho: 1718399
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 11.5V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | UDFN |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 70A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.6mm |
| Capacitance | 16pF |
| Working Voltage | 5V |
| Test Current | 1mA |
| Dimensions | 1.6 x 1 x 0.5mm |
| Width | 1mm |
| Height | 0.5mm |
| Maximum Reverse Leakage Current | 100nA |
