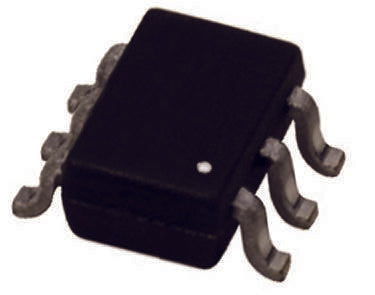

ON Semiconductor MMQA5V6T3G, Quad Uni-Directional TVS Diode, 150W, 6-Pin SC-74 [MMQA5V6T3G]; 786-2971
0₫
Mã kho: 7862971
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 8V |
| Minimum Breakdown Voltage | 5.32V |
| Mounting Type | Surface Mount |
| Package Type | SC-74 |
| Maximum Reverse Stand-off Voltage | 3V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 150W |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 2µA |
| Length | 3.1mm |
| Height | 1mm |
| Width | 1.7mm |
| Test Current | 1mA |
| Dimensions | 3.1 x 1.7 x 1mm |
