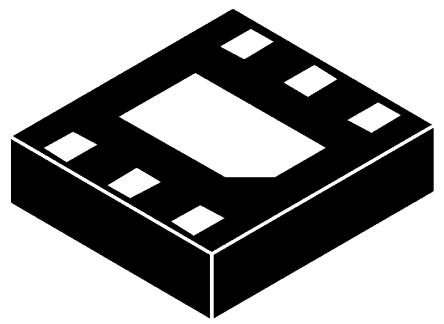

ON Semiconductor ESDR0502NMUTBG, Quad Uni-Directional ESD Protection Array, 100W, 6-Pin U-DFN1210 [ESDR0502NMUTBG]; 162-9332
0₫
Mã kho: 1629332
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | U-DFN1210 |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 100W |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1.2mm |
| Height | 0.5mm |
| Width | 1mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 1.2 x 1 x 0.5mm |
