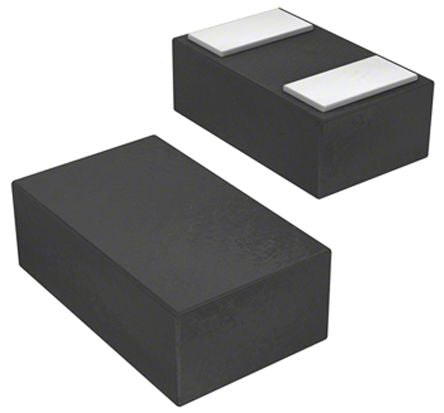

ON Semiconductor ESDM3551N2T5G, Bi-Directional ESD Protection Diode, 2-Pin X2DFN [ESDM3551N2T5G]; 172-3325
0₫
Mã kho: 1723325
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Bi-Directional |
Maximum Clamping Voltage | 6V |
Minimum Breakdown Voltage | 5.6V |
Mounting Type | Surface Mount |
Package Type | X2DFN |
Maximum Reverse Stand-off Voltage | 5.5V |
Pin Count | 2 |
Maximum Peak Pulse Current | 9.9A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Capacitance | 21pF |
Automotive Standard | AEC-Q101 |
Dimensions | 1 x 0.6 x 0.35mm |
Height | 0.35mm |
Width | 0.6mm |
Maximum Reverse Leakage Current | 100nA |
Test Current | 1mA |
Length | 1mm |
