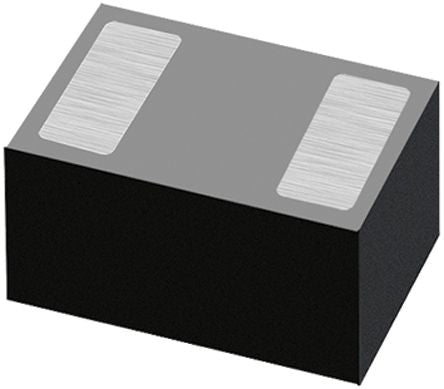

ON Semiconductor ESDM3551MXT5G, Bi-Directional ESD Protection Diode, 2-Pin X3DFN [ESDM3551MXT5G]; 172-3341
0₫
Mã kho: 1723341
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 6V |
| Minimum Breakdown Voltage | 5.6V |
| Mounting Type | Surface Mount |
| Package Type | X3DFN |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 9.9A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Capacitance | 21pF |
| Length | 0.66mm |
| Dimensions | 0.66 x 0.36 x 0.28mm |
| Maximum Reverse Leakage Current | 100nA |
| Automotive Standard | AEC-Q101 |
| Width | 0.36mm |
| Height | 0.28mm |
| Test Current | 1mA |
