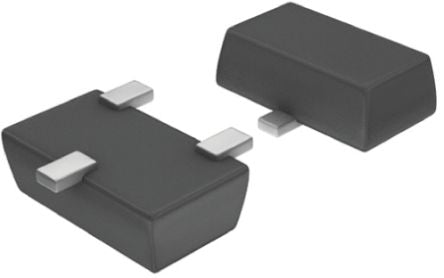

ON Semiconductor ESD7M5.0DT5G, Dual Uni-Directional TVS Diode, 0.15W, 3-Pin SOT-723 [ESD7M5.0DT5G]; 163-2148
0₫
Mã kho: 1632148
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 10.4V |
Minimum Breakdown Voltage | 5.4V |
Mounting Type | Surface Mount |
Package Type | SOT-723 |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 3 |
Peak Pulse Power Dissipation | 0.15W |
Maximum Peak Pulse Current | 1A |
ESD Protection | Yes |
Number of Elements per Chip | 2 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Dimensions | 1.25 x 0.85 x 0.55mm |
Height | 0.55mm |
Maximum Reverse Leakage Current | 1µA |
Test Current | 1mA |
Width | 0.85mm |
Capacitance | 2.5pF |
Length | 1.25mm |
Automotive Standard | AEC-Q101 |
