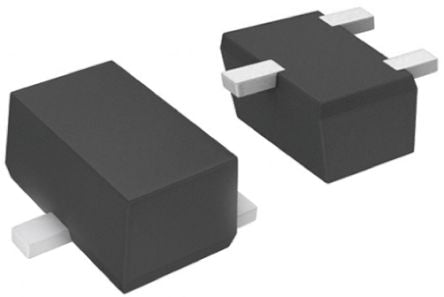

ON Semiconductor, ESD7C5.0DT5G [ESD7C5.0DT5G]; 186-9860
0₫
Mã kho: 1869860
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage | 5V |
| Mounting Type | Surface Mount |
| Package Type | SOT-723 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 240mW |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 500nA |
| Dimensions | 1.25 x 0.85 x 0.55mm |
| Width | 0.85mm |
| Height | 0.55mm |
| Length | 1.25mm |
| Capacitance | 6.2pF |
| Automotive Standard | AEC-Q101 |
| Test Current | 1mA |
