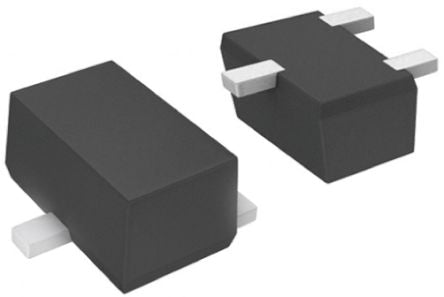

ON Semiconductor ESD7C3.3DT5G, Dual Uni-Directional TVS Diode, 0.24W, 3-Pin SOT-723 [ESD7C3.3DT5G]; 162-9326
0₫
Mã kho: 1629326
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Dual |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage | 5V |
| Mounting Type | Surface Mount |
| Package Type | SOT-723 |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 0.24W |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 1µA |
| Automotive Standard | AEC-Q101 |
| Capacitance | 13pF |
| Length | 1.25mm |
| Test Current | 1mA |
| Width | 0.85mm |
| Height | 0.55mm |
| Dimensions | 1.25 x 0.85 x 0.55mm |
