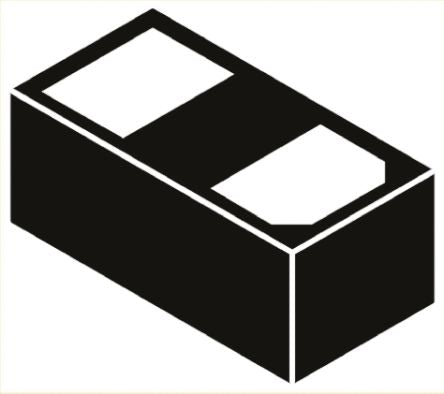

ON Semiconductor ESD7481MUT5G, Dual Bi-Directional TVS Diode, 0.25W, 2-Pin DFN [ESD7481MUT5G]; 162-8874
0₫
Mã kho: 1628874
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 12V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 0.25W |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 0.62 x 0.32 x 0.28mm |
| Automotive Standard | AEC-Q101 |
| Length | 0.62mm |
| Capacitance | 0.4pF |
| Height | 0.28mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 50nA |
| Width | 0.32mm |
