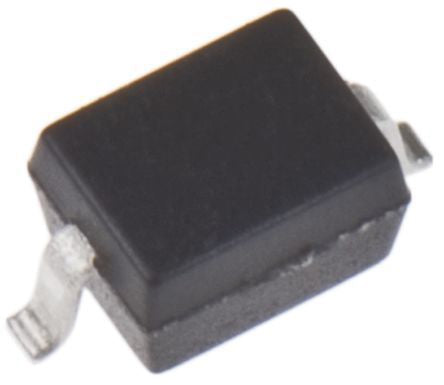

ON Semiconductor, ESD7371HT1G [ESD7371HT1G]; 186-9039
0₫
Mã kho: 1869039
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 20V |
| Minimum Breakdown Voltage | 7V |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Maximum Reverse Stand-off Voltage | 5.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 300mW |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Working Voltage | 5.3V |
| Length | 1.8mm |
| Automotive Standard | AEC-Q101 |
| Capacitance | 0.7pF |
| Test Current | 1mA |
| Width | 1.35mm |
| Maximum Reverse Leakage Current | 50nA |
| Dimensions | 1.8 x 1.35 x 0.9mm |
| Height | 0.9mm |
