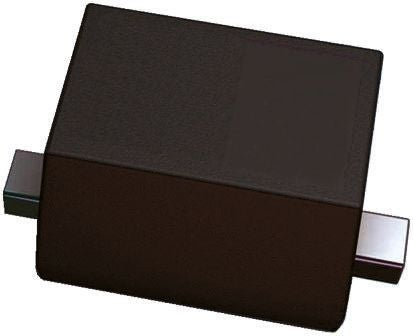

ON Semiconductor ESD5Z7.0T1G, Uni-Directional TVS Diode, 200W, 2-Pin SDO-523 [ESD5Z7.0T1G]; 145-3375
0₫
Mã kho: 1453375
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Direction Type | Uni-Directional |
Diode Configuration | Single |
Maximum Clamping Voltage | 13.5V |
Minimum Breakdown Voltage | 7.5V |
Mounting Type | Surface Mount |
Package Type | SDO-523 |
Maximum Reverse Stand-off Voltage | 7V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 200W |
Maximum Peak Pulse Current | 22.7A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Test Current | 1mA |
Maximum Reverse Leakage Current | 10nA |
Dimensions | 1.3 x 0.9 x 0.7mm |
Length | 1.3mm |
Height | 0.7mm |
Width | 0.9mm |
