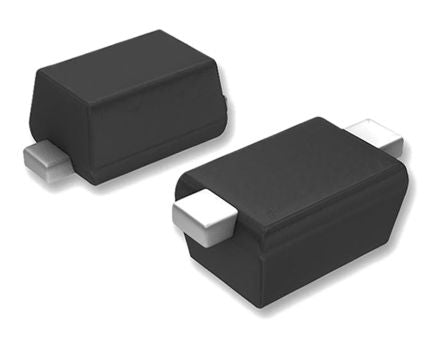

ON Semiconductor ESD5Z3.3T1G, Uni-Directional TVS Diode, 200W, 2-Pin SOD-523 [ESD5Z3.3T1G]; 689-9985
0₫
Mã kho: 6899985
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 14.1V |
| Minimum Breakdown Voltage | 5V |
| Mounting Type | Surface Mount |
| Package Type | SOD-523 |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 200W |
| Maximum Peak Pulse Current | 11.2A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 1.2 x 0.8 x 0.6mm |
| Maximum Reverse Leakage Current | 50nA |
| Length | 1.2mm |
| Height | 0.6mm |
| Width | 0.8mm |
| Test Current | 1mA |
