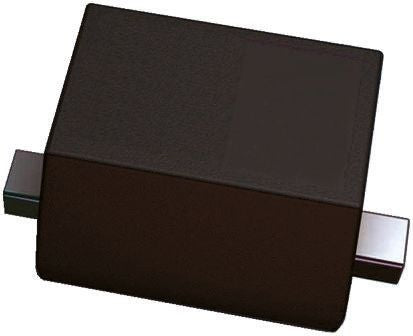

ON Semiconductor ESD5Z2.5T1G, Uni-Directional TVS Diode, 120W, 2-Pin SOD-523 [ESD5Z2.5T1G]; 145-3063
0₫
Mã kho: 1453063
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 10.9V |
| Minimum Breakdown Voltage | 4V |
| Mounting Type | Surface Mount |
| Package Type | SOD-523 |
| Maximum Reverse Stand-off Voltage | 2.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 120W |
| Maximum Peak Pulse Current | 11A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 0.9mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 6µA |
| Length | 1.3mm |
| Dimensions | 1.3 x 0.9 x 0.7mm |
| Height | 0.7mm |
