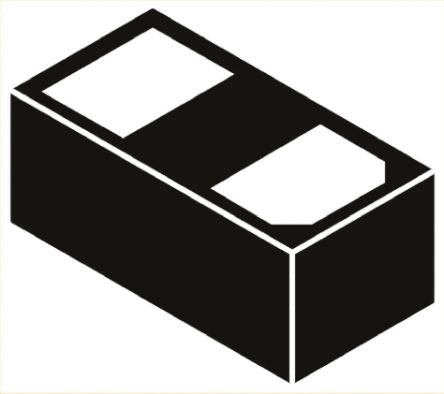

ON Semiconductor ESD5481MUT5G, Dual Bi-Directional TVS Diode, 0.3W, 2-Pin DFN [ESD5481MUT5G]; 145-4217
0₫
Mã kho: 1454217
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 23V |
| Minimum Breakdown Voltage | 5.7V |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 0.3W |
| Maximum Peak Pulse Current | 2A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 0.66mm |
| Capacitance | 15pF |
| Dimensions | 0.66 x 0.36 x 0.28mm |
| Width | 0.36mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
| Height | 0.28mm |
