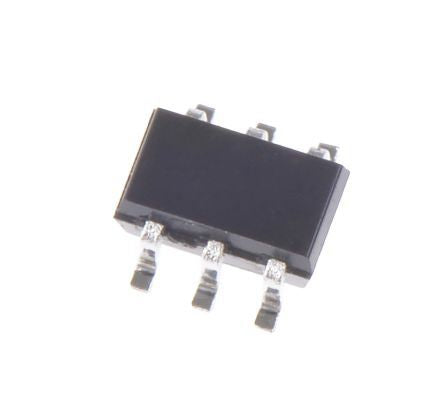

ON Semiconductor, DF6A6.8FUT1G [DF6A6.8FUT1G]; 186-9035
0₫
Mã kho: 1869035
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage | 6.4V |
| Mounting Type | Surface Mount |
| Package Type | SC-88 |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 75W |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 1.35mm |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 2.2 x 1.35 x 1mm |
| Capacitance | 40pF |
| Height | 1mm |
| Length | 2.2mm |
