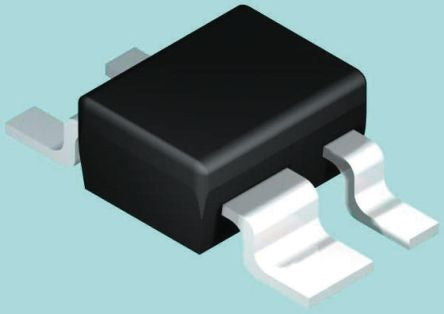

ON Semiconductor CM1293A-02SR, Quint Uni-Directional ESD Protection Array, 0.22W, 4-Pin SOT-143 [CM1293A-02SR]; 162-9308
0₫
Mã kho: 1629308
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Array |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 9.9V |
Mounting Type | Surface Mount |
Package Type | SOT-143 |
Maximum Reverse Stand-off Voltage | 5.5V |
Pin Count | 4 |
Peak Pulse Power Dissipation | 0.22W |
Maximum Peak Pulse Current | 1A |
ESD Protection | Yes |
Number of Elements per Chip | 5 |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Height | 0.97mm |
Width | 1.4mm |
Capacitance | 2pF |
Test Current | 8µA |
Maximum Reverse Leakage Current | 1µA |
Dimensions | 3.05 x 1.4 x 0.97mm |
Length | 3.05mm |
