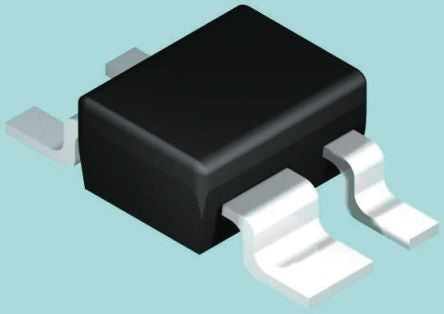

ON Semiconductor CM1223-02SR, Quad Uni-Directional TVS Diode Array, 0.22W, 4-Pin SOT-143 [CM1223-02SR]; 121-6377
0₫
Mã kho: 1216377
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Array |
| Maximum Clamping Voltage | 8.2V |
| Mounting Type | Surface Mount |
| Package Type | SOT-143 |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 4 |
| Peak Pulse Power Dissipation | 0.22W |
| Maximum Peak Pulse Current | 1A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 3.05mm |
| Capacitance | 1.5pF |
| Width | 1.4mm |
| Height | 0.97mm |
| Maximum Reverse Leakage Current | ±1µA |
| Dimensions | 3.05 x 1.4 x 0.97mm |
