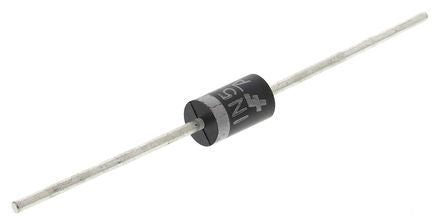

ON Semiconductor 1V5KE400A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-201AE [1V5KE400A]; 166-3311
0₫
Mã kho: 1663311
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 548V |
| Minimum Breakdown Voltage | 420V |
| Mounting Type | Through Hole |
| Package Type | DO-201AE |
| Maximum Reverse Stand-off Voltage | 342V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 2.8A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 9.5mm |
| Diameter | 5.6mm |
| Surge Current Rating | 200A |
| Maximum Reverse Leakage Current | 5µA |
| Dimensions | 5.6 (Dia.) x 9.5 (L)mm |
| Test Current | 1mA |
