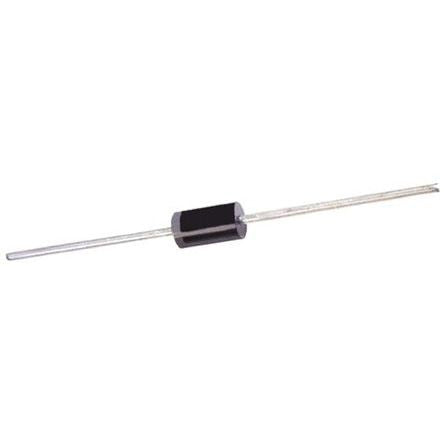

ON Semiconductor 1V5KE39CA, Bi-Directional TVS Diode, 1500W, 2-Pin DO-201AE [1V5KE39CA]; 166-1923
0₫
Mã kho: 1661923
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 53.9V |
| Minimum Breakdown Voltage | 37.1V |
| Mounting Type | Through Hole |
| Package Type | DO-201AE |
| Maximum Reverse Stand-off Voltage | 33.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 28A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Dimensions | 5.6 (Dia.) x 9.5mm |
| Diameter | 5.6mm |
| Height | 9.5mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 5µA |
