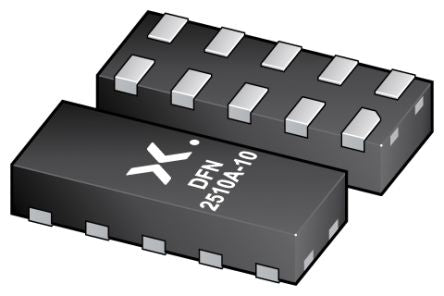

Nexperia PUSB3FR4Z, Hex ESD Protection Diode, 10-Pin DFN2510A [PUSB3FR4Z]; 151-3104
by Nexperia
0₫
Mã kho: 1513104
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Clamping Voltage | 3V |
| Minimum Breakdown Voltage | 5.5V |
| Mounting Type | Surface Mount |
| Package Type | DFN2510A |
| Pin Count | 10 |
| Maximum Peak Pulse Current | 7A |
| ESD Protection | Yes |
| Number of Elements per Chip | 6 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 2.6mm |
| Capacitance | 0.34pF |
| Working Voltage | 3.3V |
| Height | 0.45mm |
| Width | 1.1mm |
| Dimensions | 2.6 x 1.1 x 0.45mm |
| Maximum Reverse Leakage Current | 100nA |
