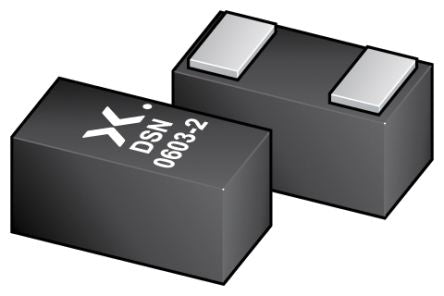

Nexperia PESD5V0X1BCSFYL, Dual Bi-Directional ESD Protection Diode, 2-Pin DSN0603 [PESD5V0X1BCSFYL]; 151-3233
by Nexperia
0₫
Mã kho: 1513233
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Dual |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 5.5V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | DSN0603 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 7A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| ESD Voltage | 20kV |
| Dimensions | 0.62 x 0.32 x 0.29mm |
| Maximum Reverse Leakage Current | 50nA |
| Width | 0.32mm |
| Height | 0.29mm |
| Capacitance | 1.1pF |
| Length | 0.62mm |
